186F 192F 195F 198F Air Cooled Diesel Engine for Tillers & Generators

  • Legendary 186F Series Reliability: The global standard for air-cooled diesel power, optimized for extreme heat and dust.
  • Extreme Torque Outputs: Up to 18HP (198F) for the most demanding agricultural and industrial applications.
  • Direct-Injection Efficiency: Consumes 30% less fuel than equivalent gasoline engines while delivering 3x the digging torque.
  • Easy Electric Start Options: Integrated charging coils and high-torque starting motors for instant keyed ignition.
  • Full Technical Support: Every engine comes with a detailed parts blueprint and 1-year factory warranty on core blocks.
Operation Method
Handheld & Walk Behind
Transmission
Gear
Clutch
Friction Plate Type | Normally Closed Clutch
Gear Shifting
2 , 0 , 1 , -1
Dimensions
1950*1550*1240 mm
Hexagonal Main Shaft Diameter
32 mm
Blades
Dryland Blade 38pc (3+1+1)
Tilling Depth & Width
Depth 120 mm | Width 1400 mm
Tire
Pneumatic Rubber Tires: 500-12
Engine Model
198F, Single-cylinder, Four-stroke, Forced Air Cooling
Bore × Stroke
78*62 mm
Fuel Tank Capacity
5.5 L
Fuel Consumption
≤35 kg/hm²
Starting Method
Electric Start
Package Info
Wooden Crate, 980*570*800 mm, 155 Kg
Starting Method:
Electric Start
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail

Description

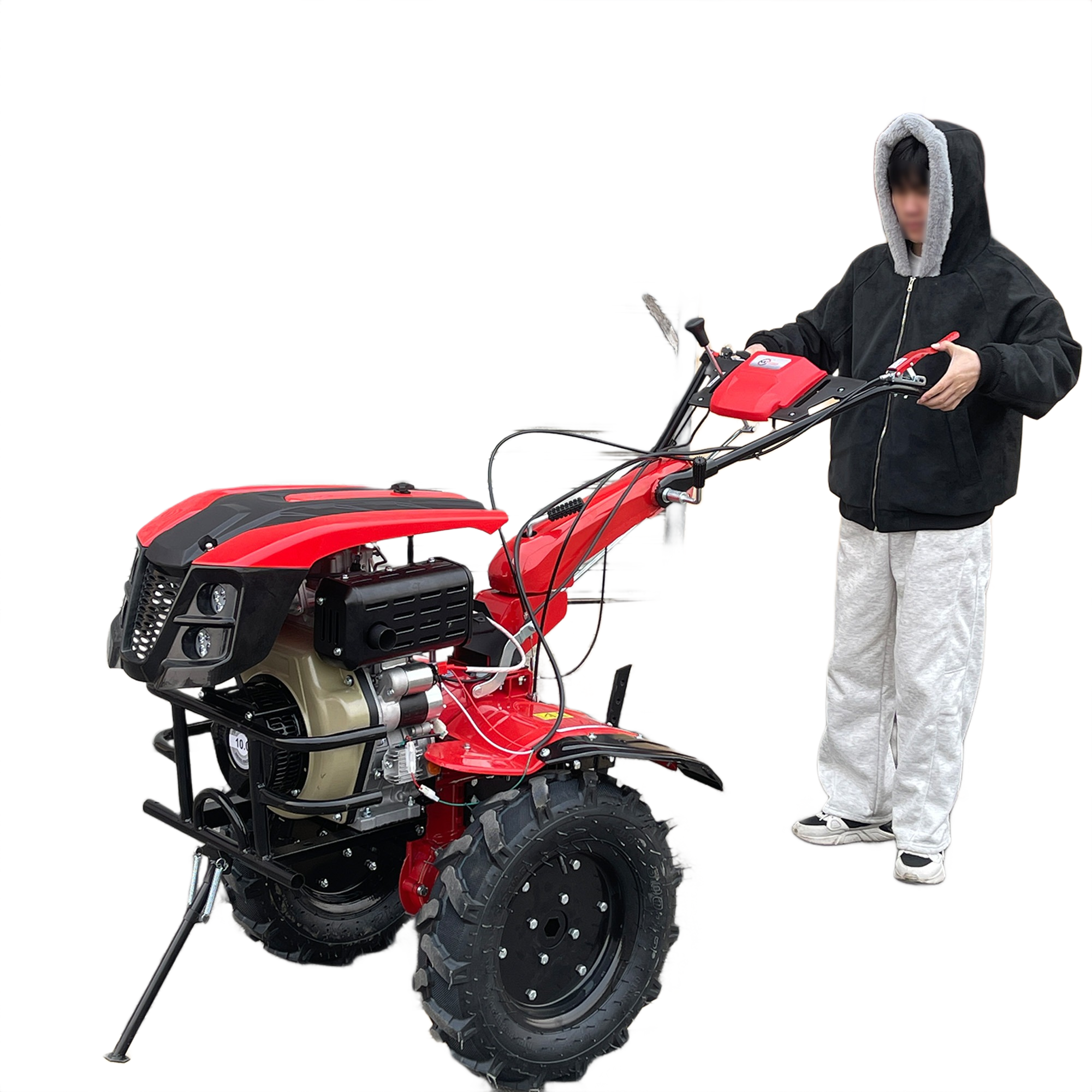

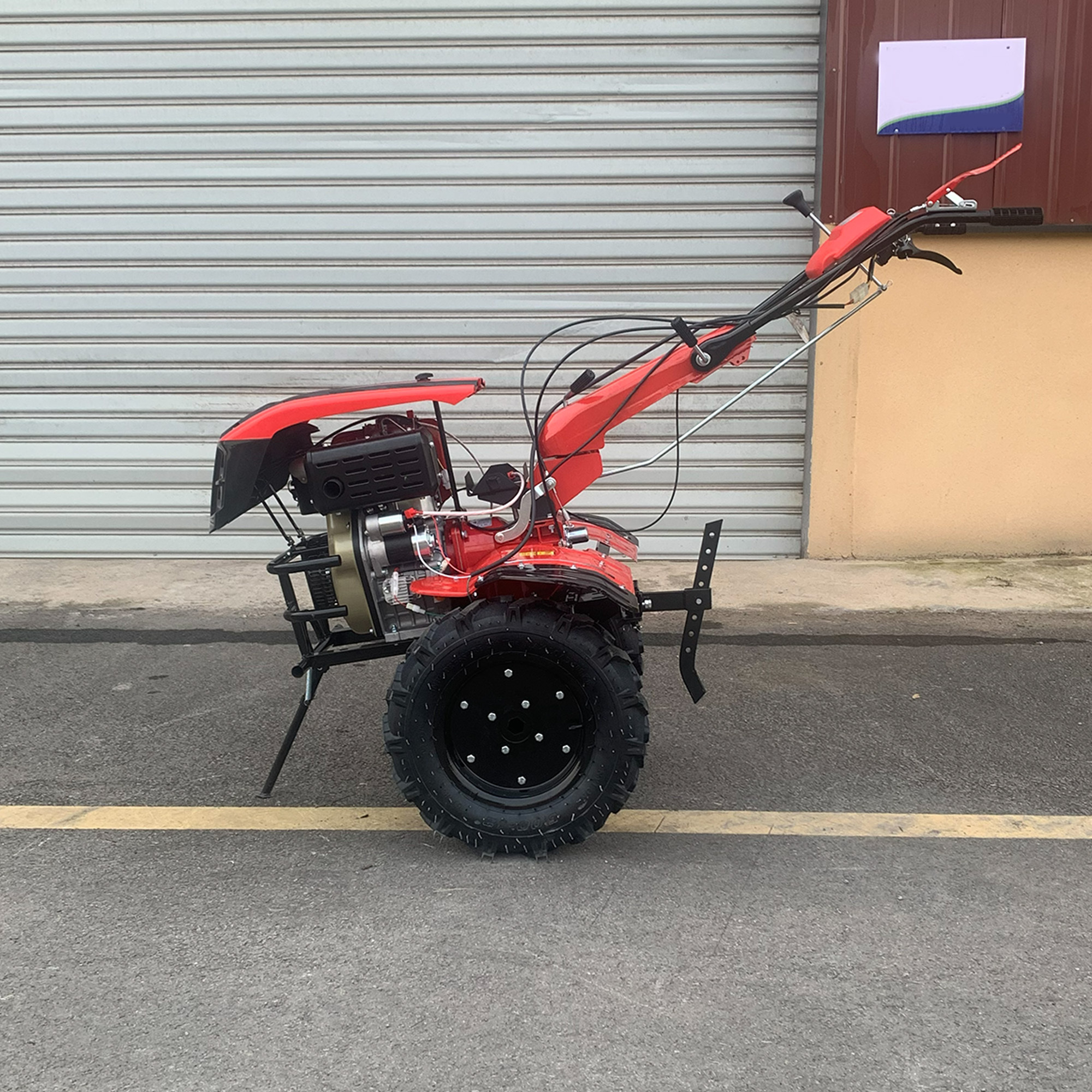

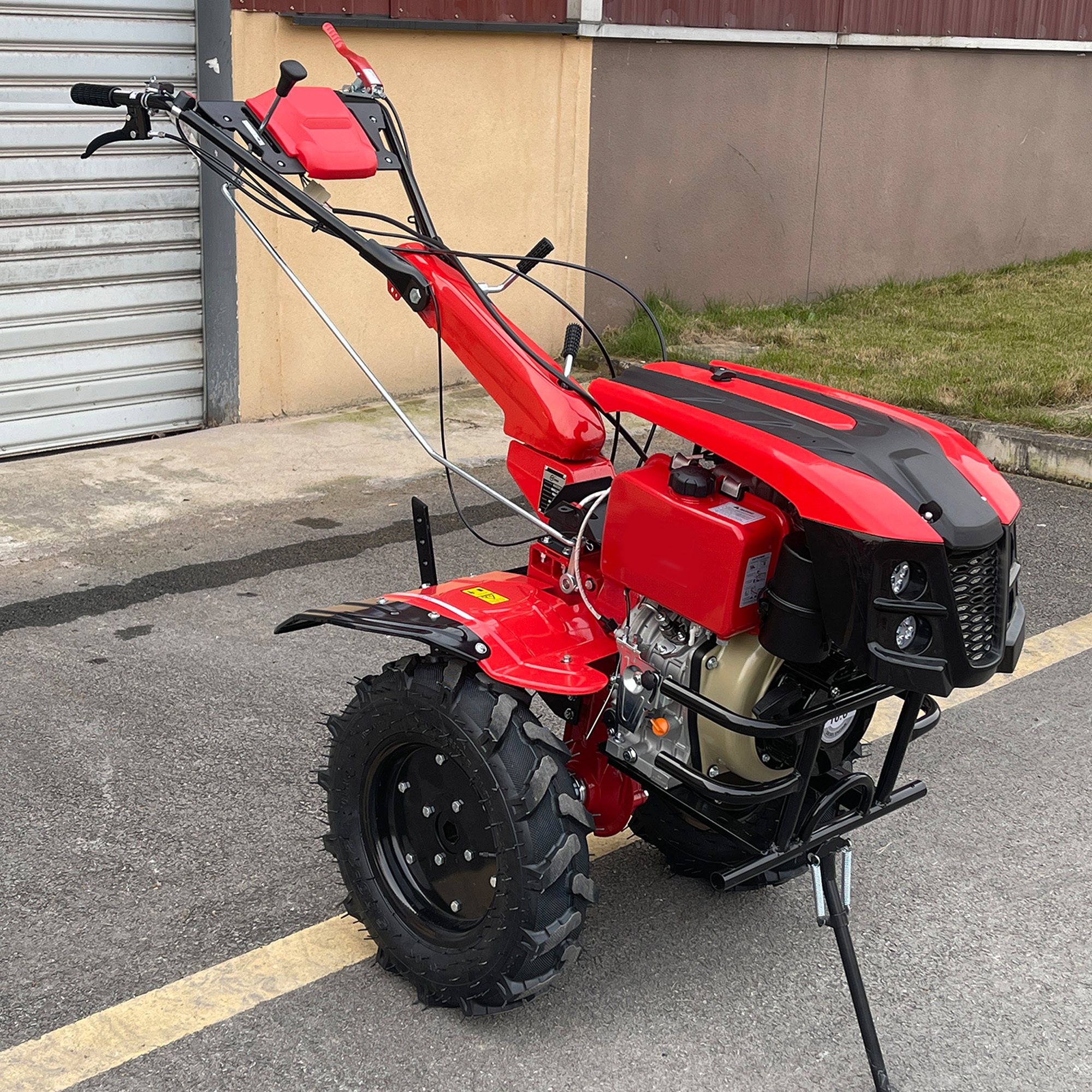

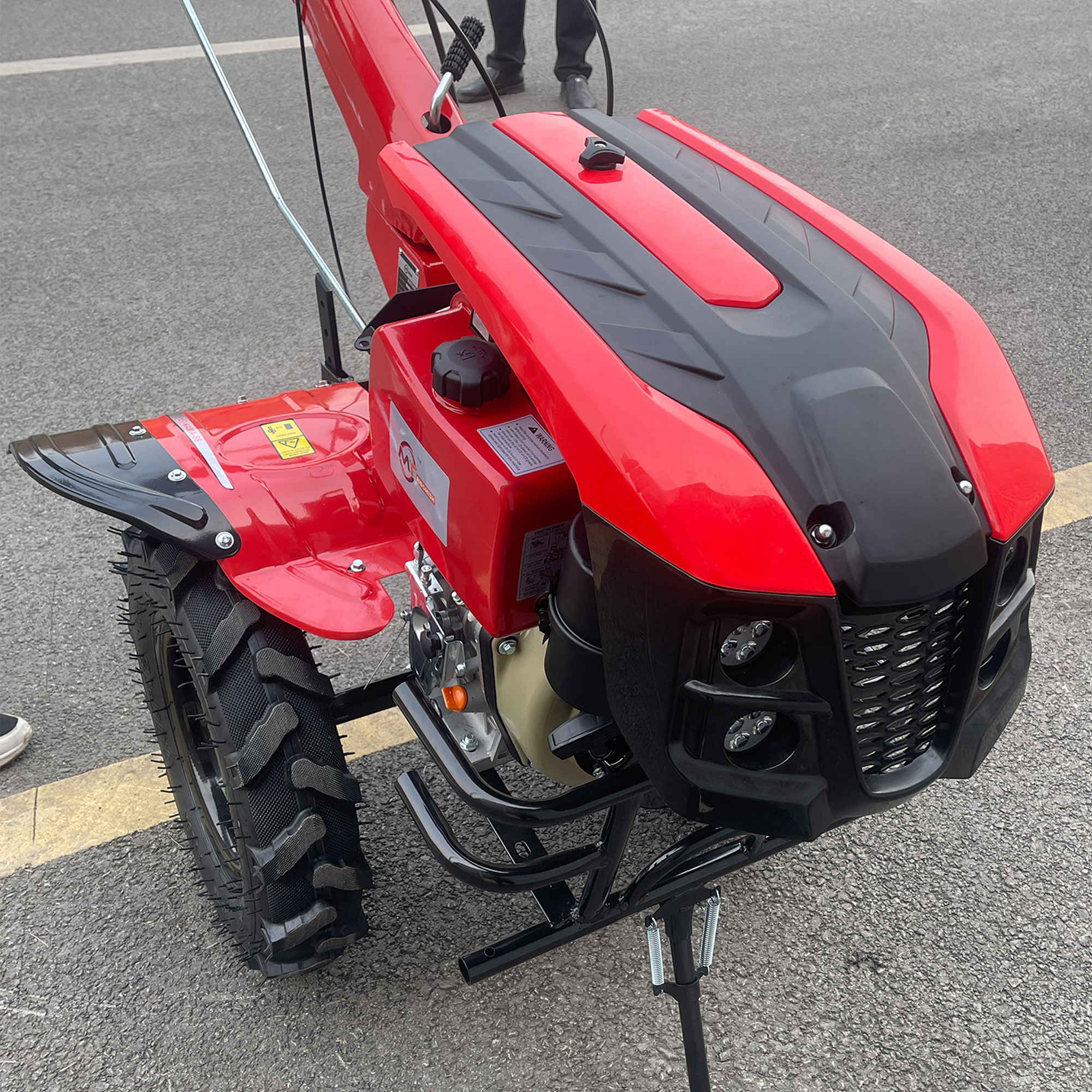

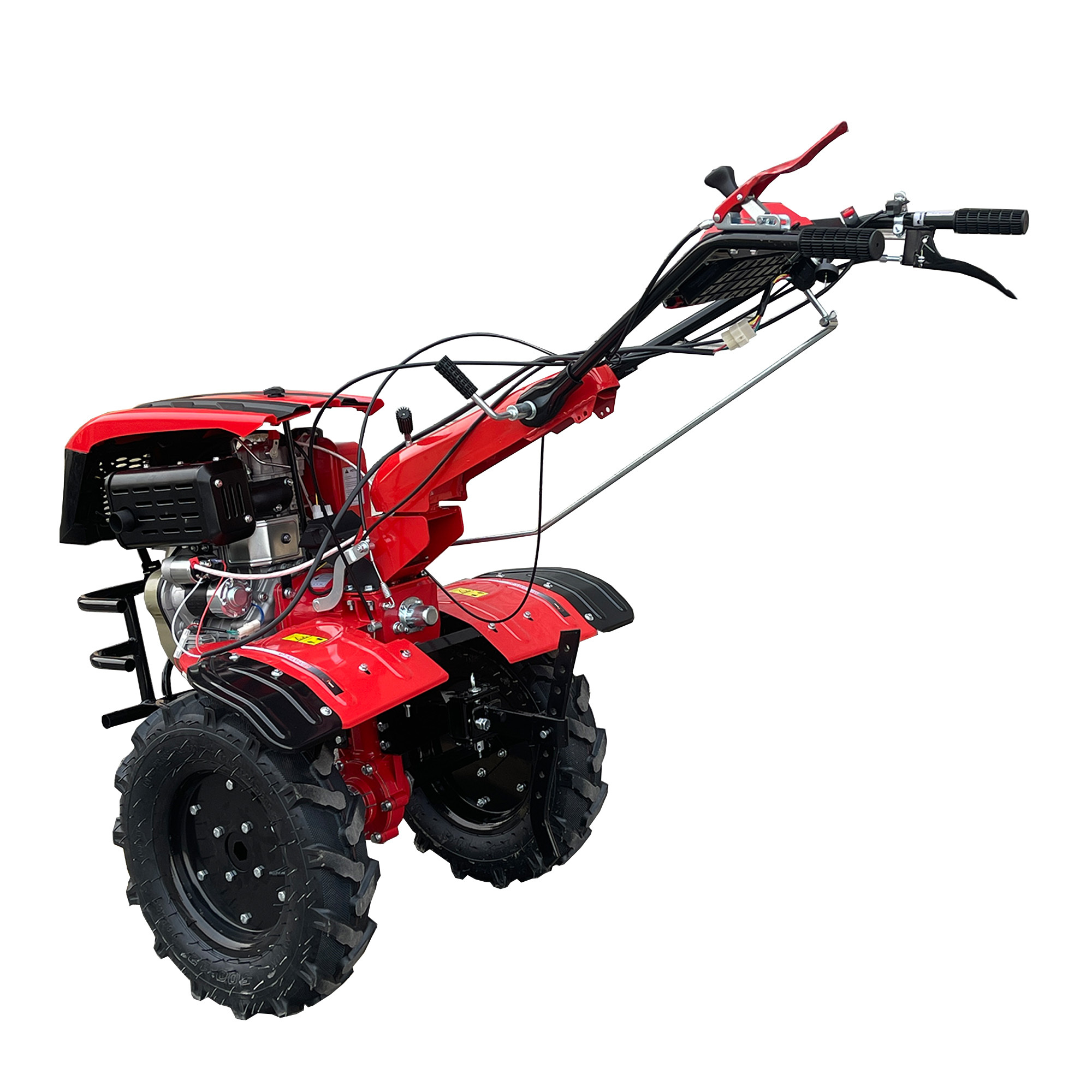

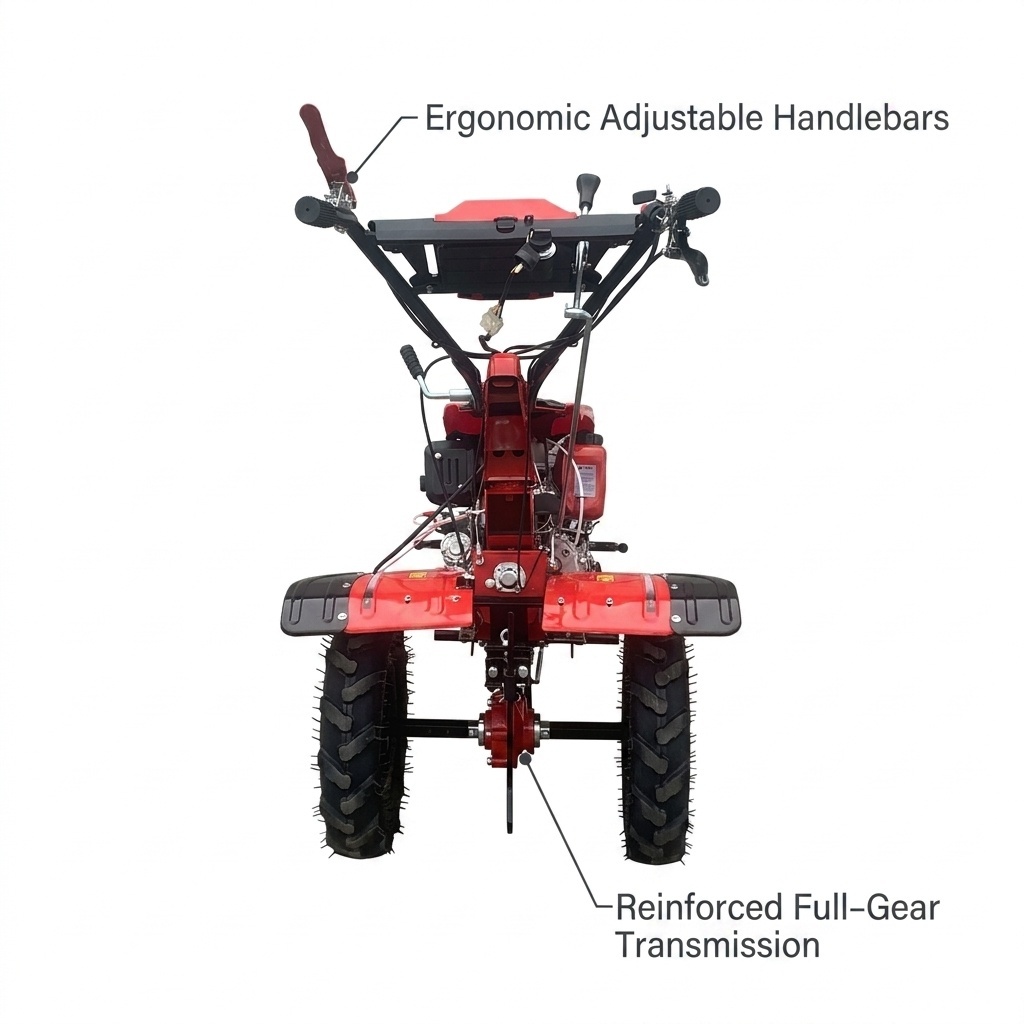

The TSBL1350D is the "Beast of the Field."
When standard tillers bounce off the surface, SBL's 18HP diesel system uses raw weight and compression torque to dig deep.

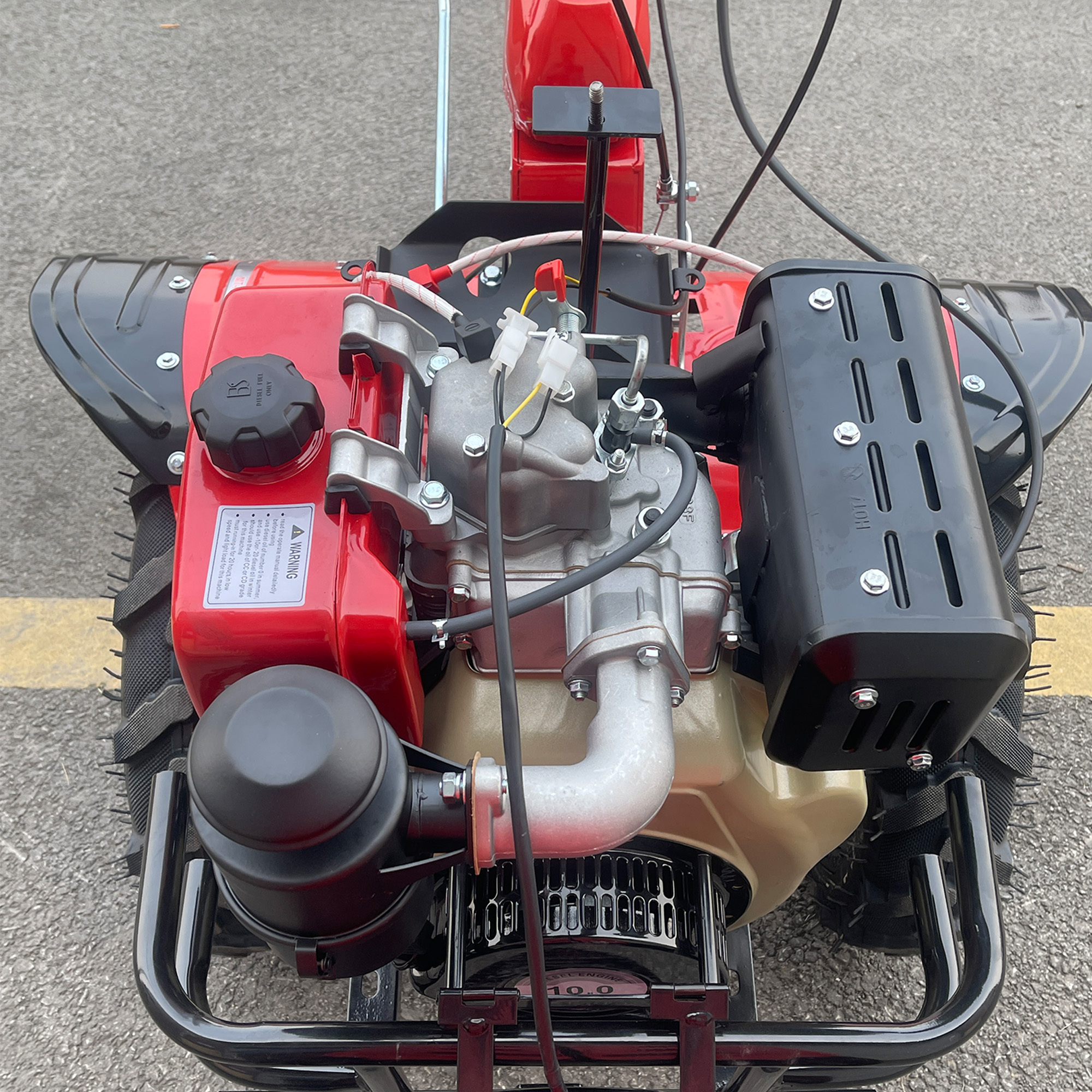

Featuring the legendary 198F direct-injection engine, it consumes 30% less fuel than gas models while providing 3x the digging force.
Ideal for commercial farmers in LATAM and Africa who deal with sun-baked soil.

Product name
TSBL1350Dp
Fuel type
Diesel
Transmission gear drive
Engine Model 186FA
Displacement 418cc
Gear Shifting 2, 0 ,1, -1
Starting Method
Manual Start & Electric Start Optional
Tire Size 500-12
Fuel Tank Capacity 5.5L
Net Machine Weight
150kg
Gross Weight 155kg
Package Size 980*570*800mm
Notes
During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly. Logistics shipping is typically done using wooden crates for container loading, with customizable carton packaging available upon request.





Q: Are you a manufacturing company or a trading company?
A: We are an integrated trade and manufacturing company. All of our products are manufactured by our own company, and we have been operating in the Chinese market for over 10 years.
Q: Do you support sending samples?
A: Yes, we can produce and send samples according to your requirements. However, please note that you will be responsible for the costs of sample production and logistics.
Q: Do you offer branding on your products?
A: Absolutely! If you don't have a developed brand strategy, we can offer paid services to support you, including marketing, product customization, packaging design, and sales strategy development.
Q: How can I ensure the quality of the products I order?
A: We provide free inspection photos or videos from production to shipment. Additionally, we offer a one-year warranty on core components to ensure the quality of our products.
